Molex Compact Wall Mount 6 Port ST Loaded with Multimode Adapters

The Molex 601 series compact wall mount enclosures are compact units for terminating optical fiber up to 24 fibers, dependent on adapter type.

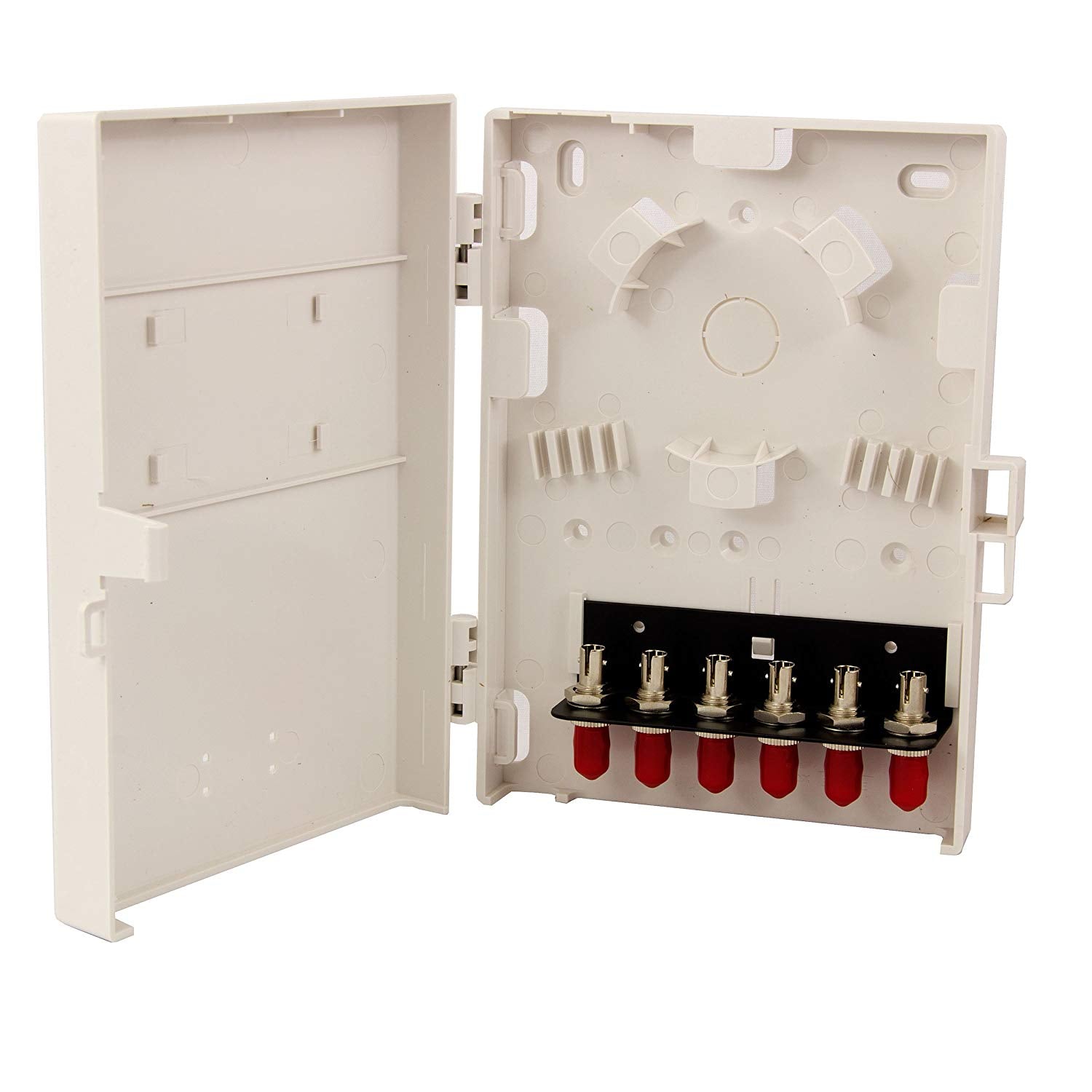

This Molex compact wall mount enclosure is made of rugged white plastic and have a low profile (7.25"H x 5"W x 1.5"D). Yet it provides the proper internal fiber management to ensure the integrity of the optical network.

Sufficient storage room for the fiber service loop makes instalaltion easy. There is also provision for a user supplied seal for added security.

The unit is compatible for splicing and direct terminations. The splice holders have been designed to accept up to 8 fusion splice protectors or mechanical splices.

Molex WFR-00010-02 Compact Wall Mount Enclosure Features:

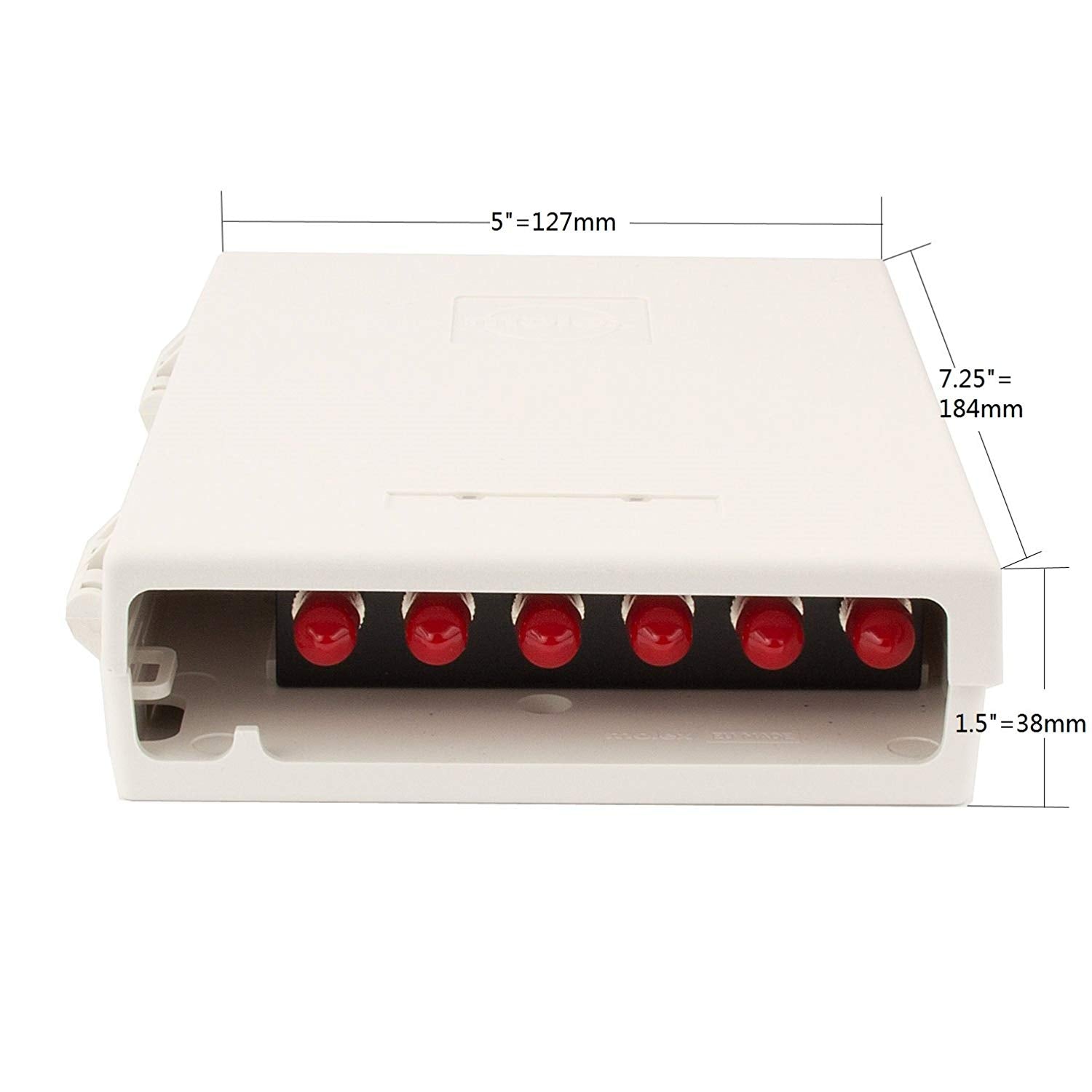

   • Compact Unit: 7.25"H x 5"W x 1.5"D

   • 6 Simplex ST Port Adapters Installed

   • Multimode Configuration

   • Accepts up to 8 fusion or mechanical splices

   • Fiber management features

   • Label holder

   • ID card

   • Top, bottom and rear access

   • Lockable

   • Rugged white plastic
