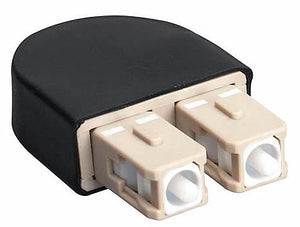

SC Loopback Module Plug with Case, Multimode 50/125μm OM2 Fiber

SC Loopback Module Plug with Case, Multimode 50/125μm OM2 Fiber

Part Number: F1-SCLB50A
  • $16.39
    Unit price per
    6 in stock.


SC connector loopback module. 50/125um multimode fiber.

These fiber optic loopback modules incorporate two fiber optic connectors. One fiber optic connector is plugged into the output port, while the other fiber optic connector is plugged into the input port of the equipment.

These fiber optic loopback modules are designed for testing and engineering purposes.  These fiber optic loopback modules provide system test engineers with a simple but effective way to test the transmission capability and receiver sensitivity of fiber optic network equipment.

These loopback modules may also be used for the burn-in stage of boards and other equipment.

Product Features:

  • Simple  and effective way to test the transmission capability and receiver sensitivity of fiber optic network equipment
  • Connector Type: SC (loopback module)
  • Fiber Type: 50/125μm OM2 Multimode Fiber
