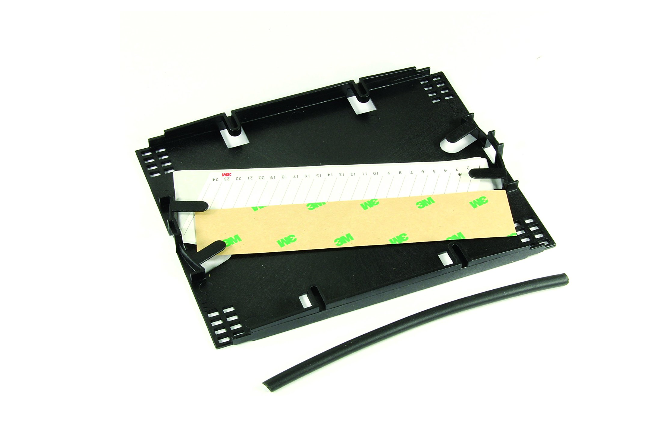

3M Fiber Optic Splice Trays are designed to protect, organize, and store a wide variety of splices. This 3M Fiber Optic Splice Tray stores 250μm, 900μm and all ribbon fiber sizes. Furthermore, this 3M Fiber Optic Splice Tray is developed to accommodate 24 single fusion splices, 72 mass fusion splices, or 6 3M Fiberlok mechanical splices per tray. Within this 3M Fiber Optic Splice Tray you can also hold a 24-fiber ribbon.
All four corners of the 3M Fiber Optic Splice Tray have features that are able to accommodate three 3M fiber transport tubes and oversized buffer tubes. Single fusion splice inserts also accommodate the 3M Fiber Optic Splice Sleeve (2170) or equivalent 3.0mm x 60mm heat shrink sleeve.

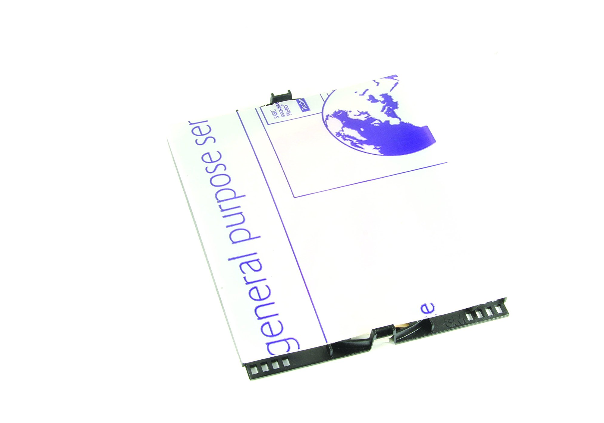

Finally, the 3M Fiber Optic Splice Tray has a cover comprised of a clear material to easily identify the splices.

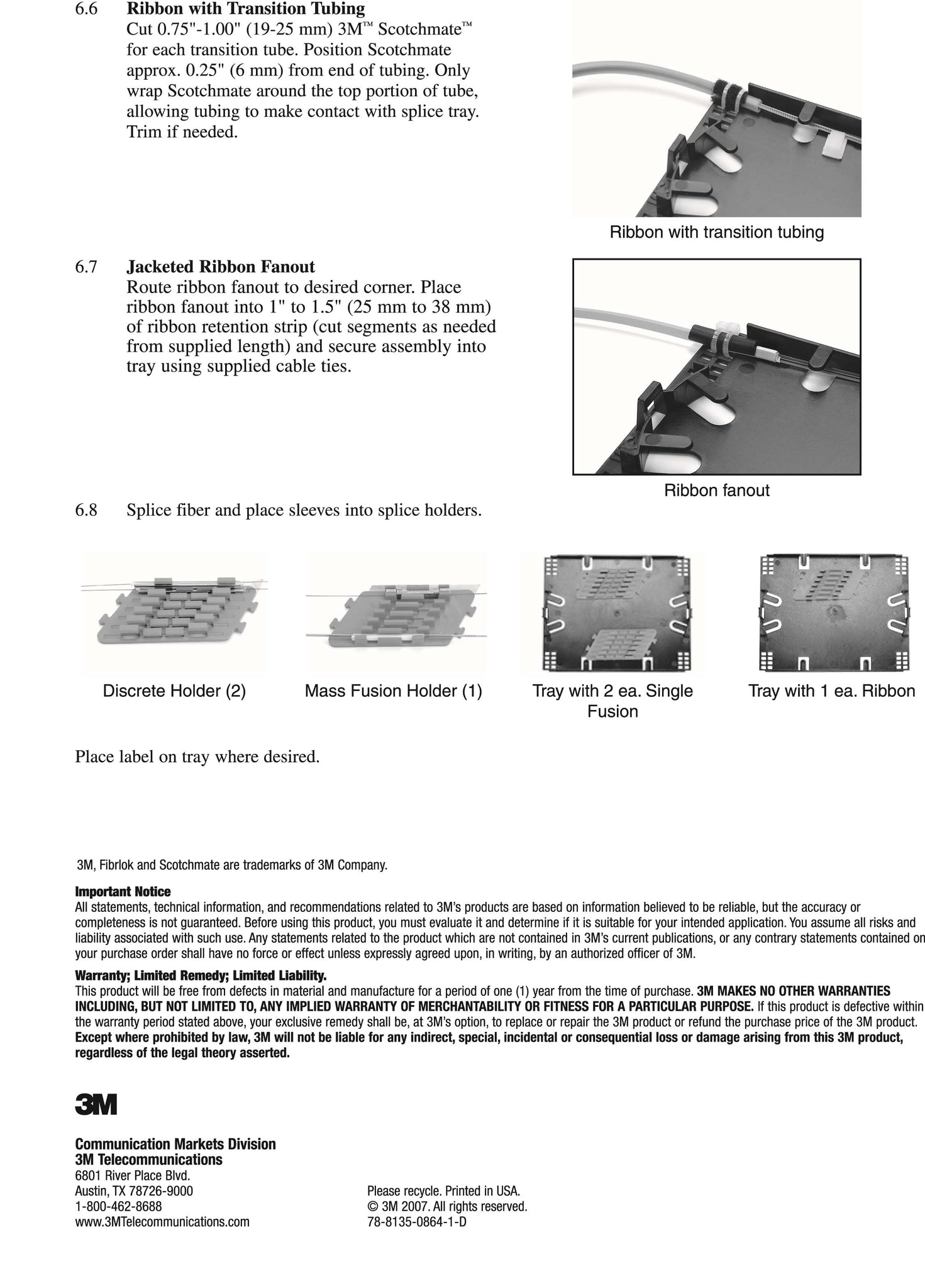

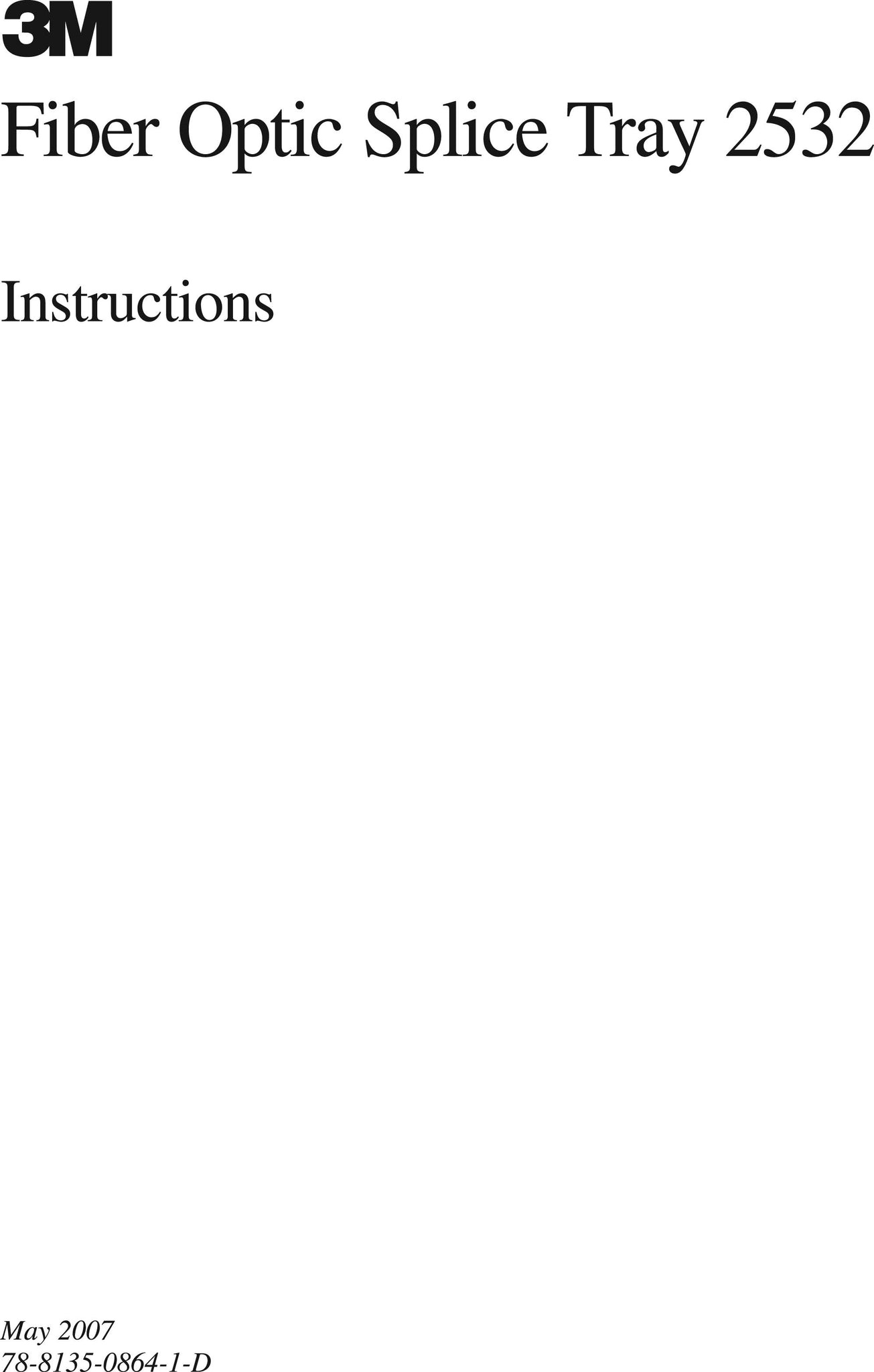

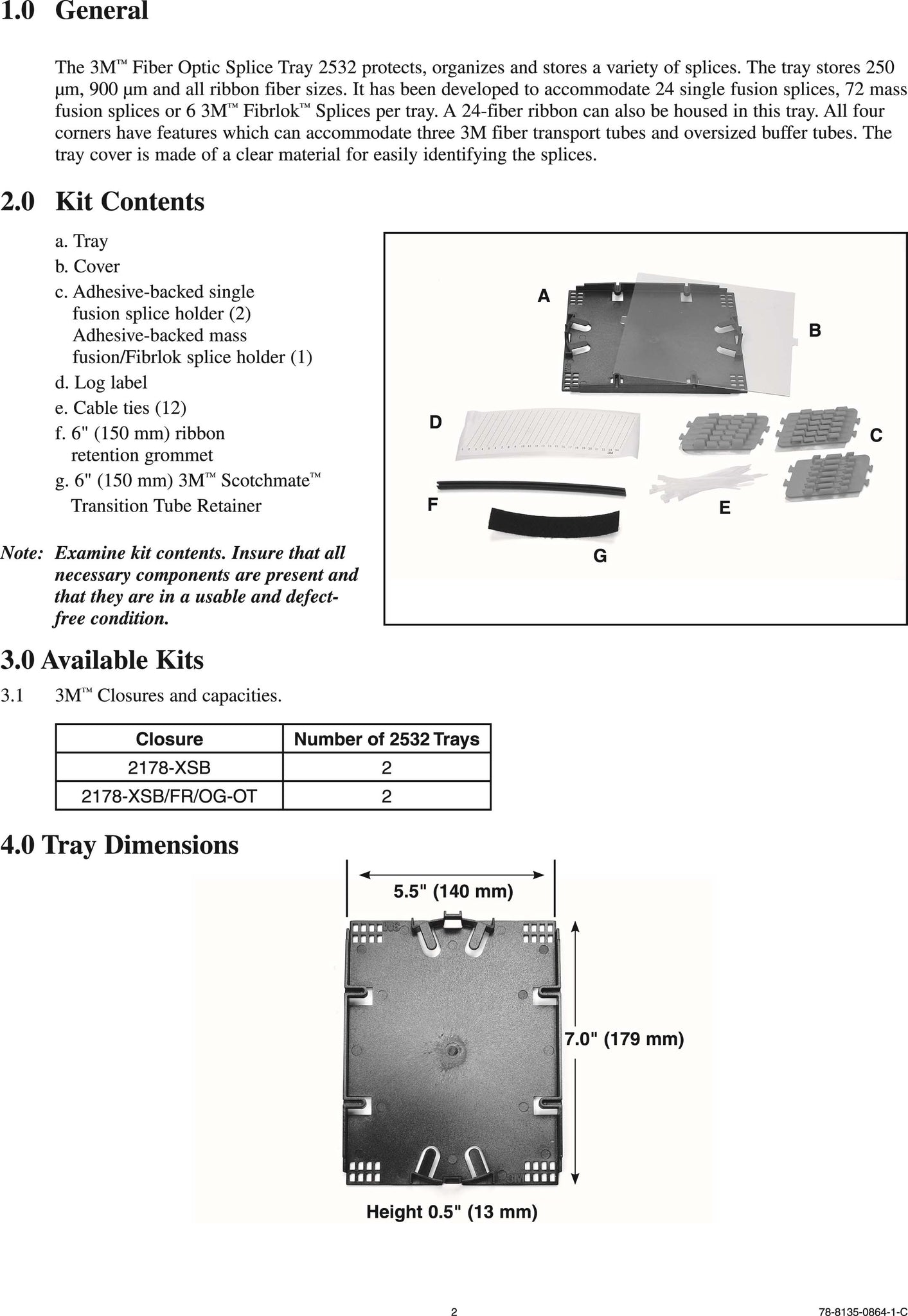

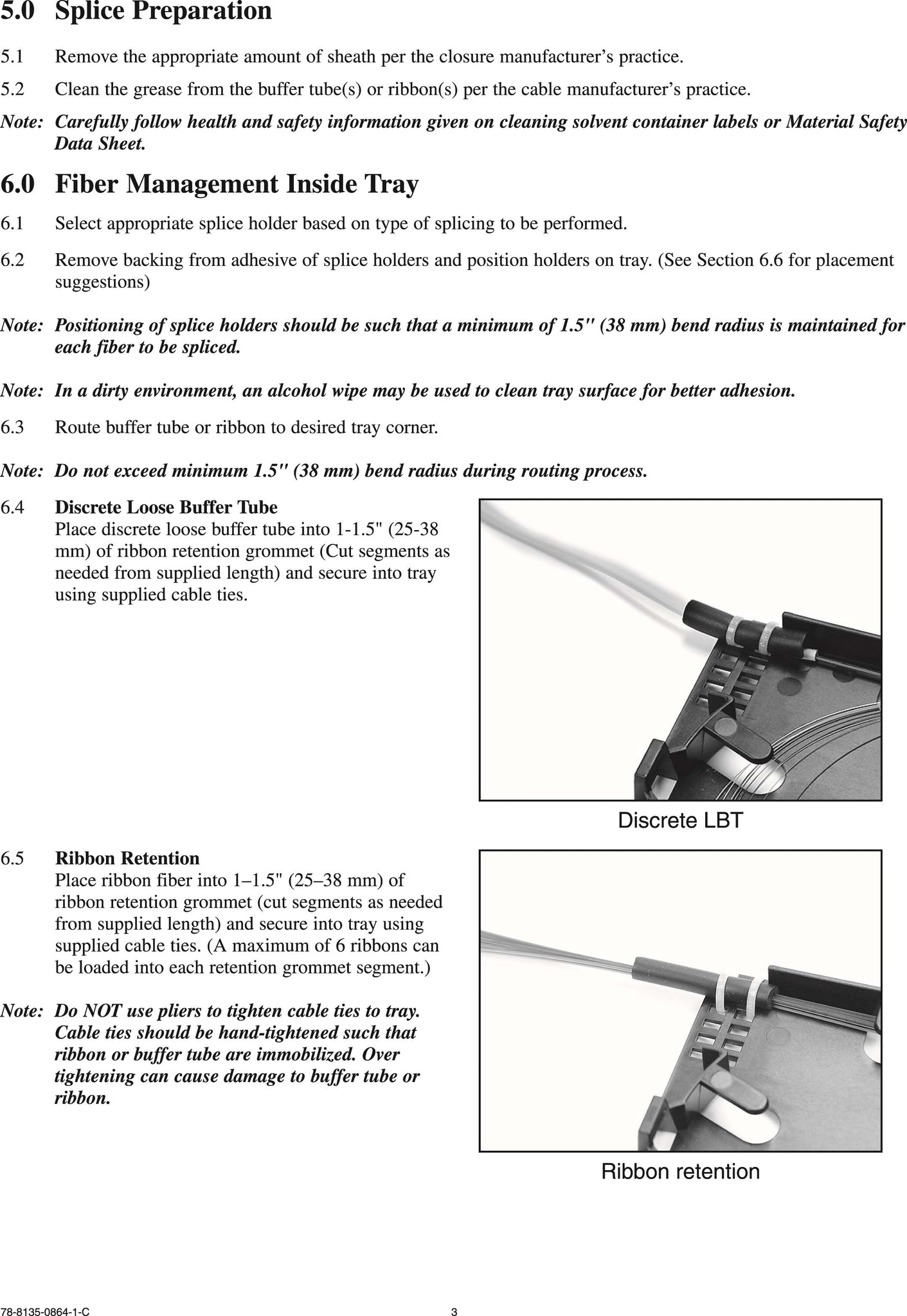

For the product specification sheet for this 3M Fiber Optic Splice Tray, click here! Note, this 3M Fiber Optic Splice Tray model (2532) does not include any splice chips.

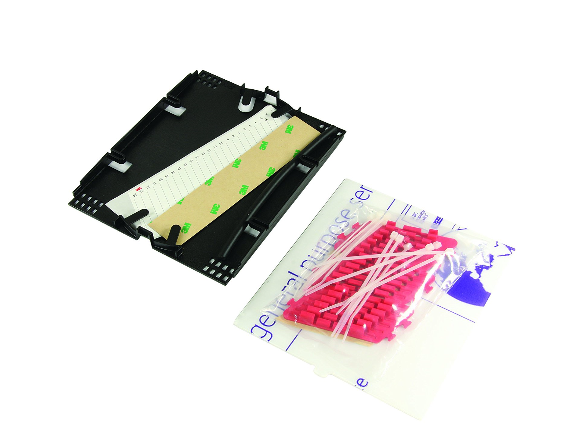

The following are the contents of this 3M Fiber Optic Splice Tray Kit:
• Adhesive-backed single fusion splice holder (2)
• Adhesive-backed mass fusion/Fibrlok splice holder (1)
• Log label
• Cable ties (12)
• Ribbon retention grommet (150mm)
• 3M Scotchmate Transition Tube Retainer (150mm)
This 3M Fiber Optic Splice Tray is compatible with:
• Aerial Strand Mount, Pedestal, Pole Mount, Underground, Wall Mount Compatible With: 2178-XSB, 2539-12-SF Tray
• All FDTC 08M Terminals, FDC 08M, FDC 08S-A, FDC 08S-B, FDC 08S-C, FDTC 08M
